Using Sample Data: The examples on this page use fields from our sample dataset. Download it and create an evaluation with it to follow along with this tutorial.

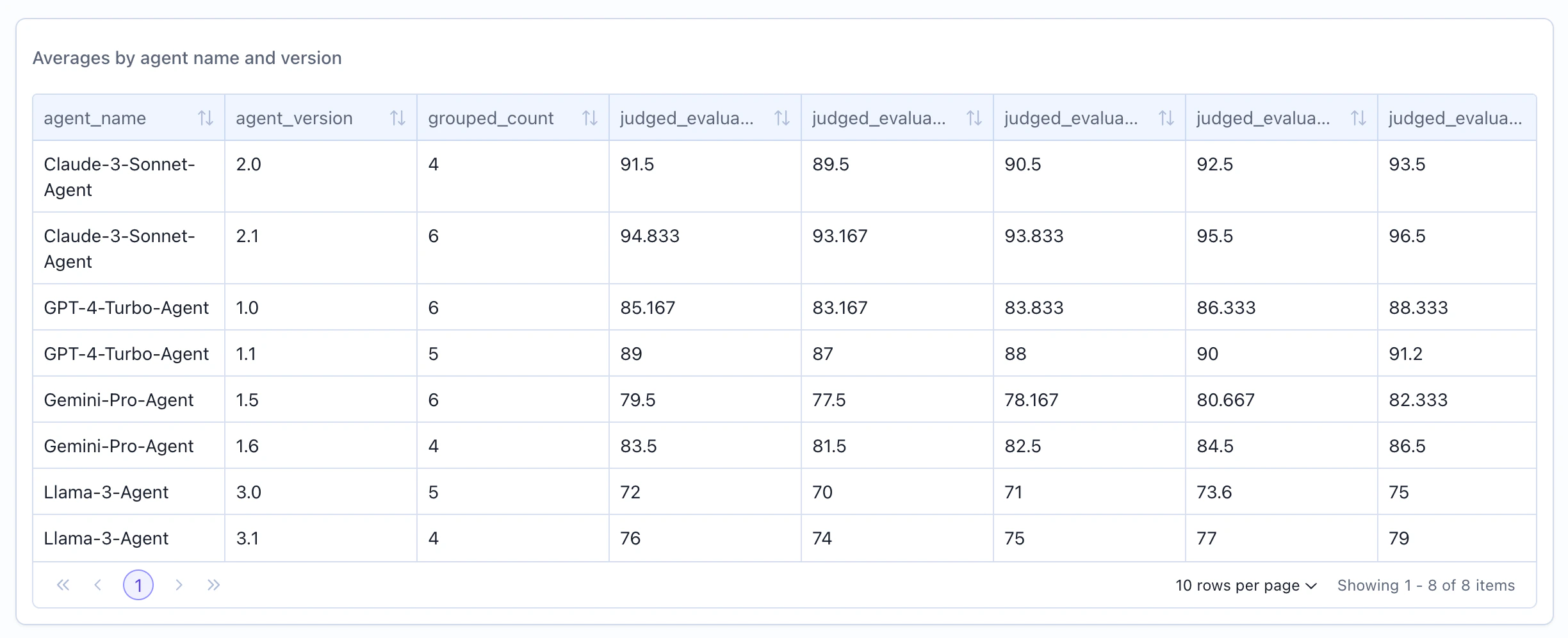

Table Widget Example

​
When to Use

Use table widgets to:
  • Show detailed breakdowns by multiple dimensions
  • Display ranked lists (top/bottom performers)
  • Present multi-column statistical summaries
  • Create export-friendly data views
  • Compare metrics across categories
  • Show individual item details

​
Configuration

​
Required Fields

​
title
string
required
Widget display name shown on the dashboard
​
type
string
required
Must be set to “table”
​
query
object
required
SeriesQuery returning multiple rows

​
Query Requirements

Table widgets require a SeriesQuery with:
  • At least one item in the select clause
  • Can mix COLUMN and AGGREGATION expressions
  • Supports filter for row filtering
  • Supports groupBy for dimensional breakdowns
  • Supports limit for top-N results
When using groupBy, all non-aggregated columns in select must appear in the groupBy array.

​
Creating in the UI

1

Open Widget Creator

From your dashboard, click “Add Widget” and select “Table”
2

Turn off Grouping (Optional)

Decide whether to group by columns or not by toggling the “Group By” toggle. If you turn off grouping, you will not be able to aggregate data.
When grouping is turned on, we will automatically output the count of the group.
3

Select Columns

If aggregating, specify which columns to group by, if not grouping select the columns you want to display.
4

Enter Title

Give your table a descriptive name (e.g., “Average Scores by Agent”)
5

Add Aggregations (Optional)

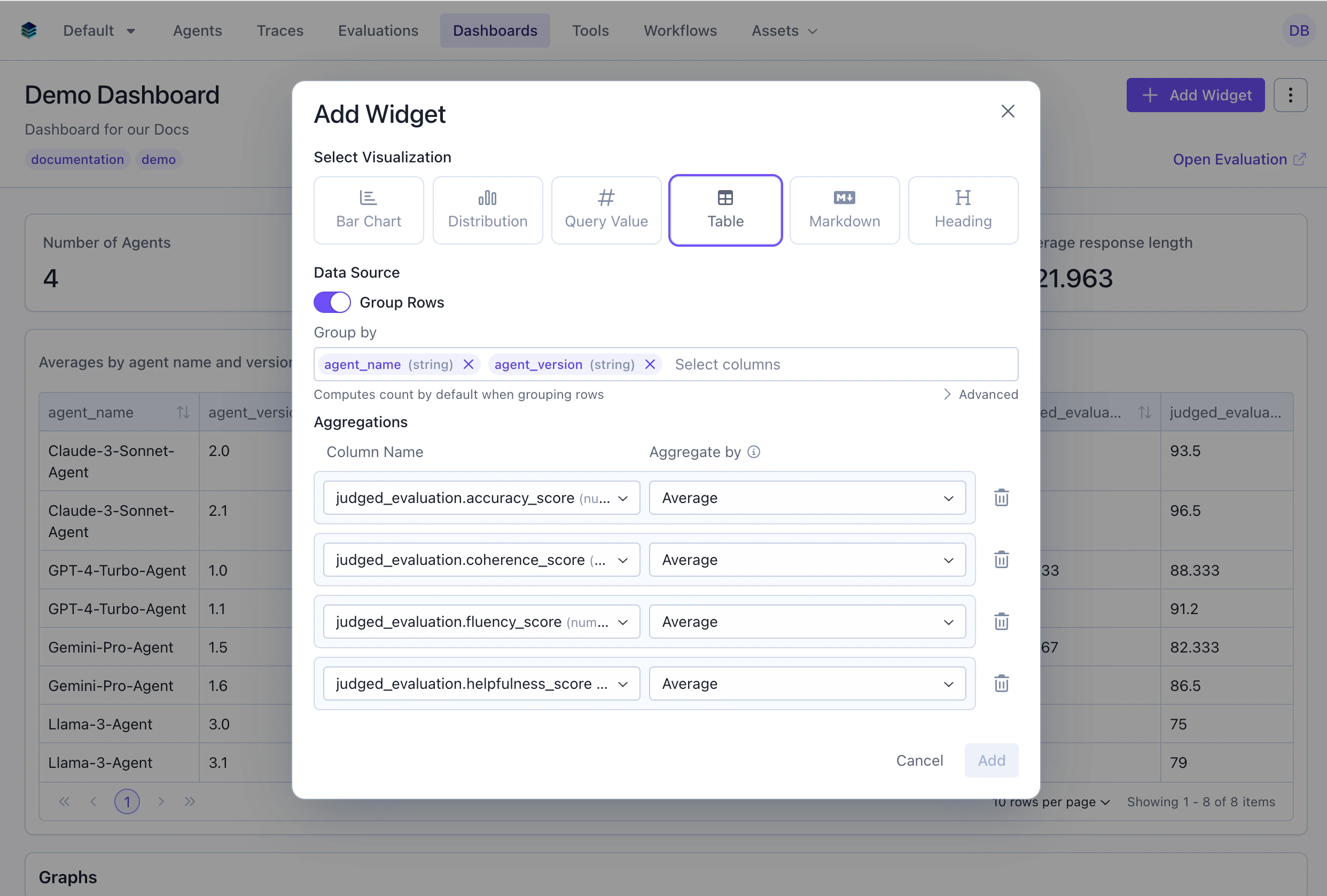

Table Aggregation Builder
Add metrics to display:
  • Columns: Select fields from your data
  • Aggregations: Add computed metrics (AVG, COUNT, etc.)
6

Add Filters (Optional)

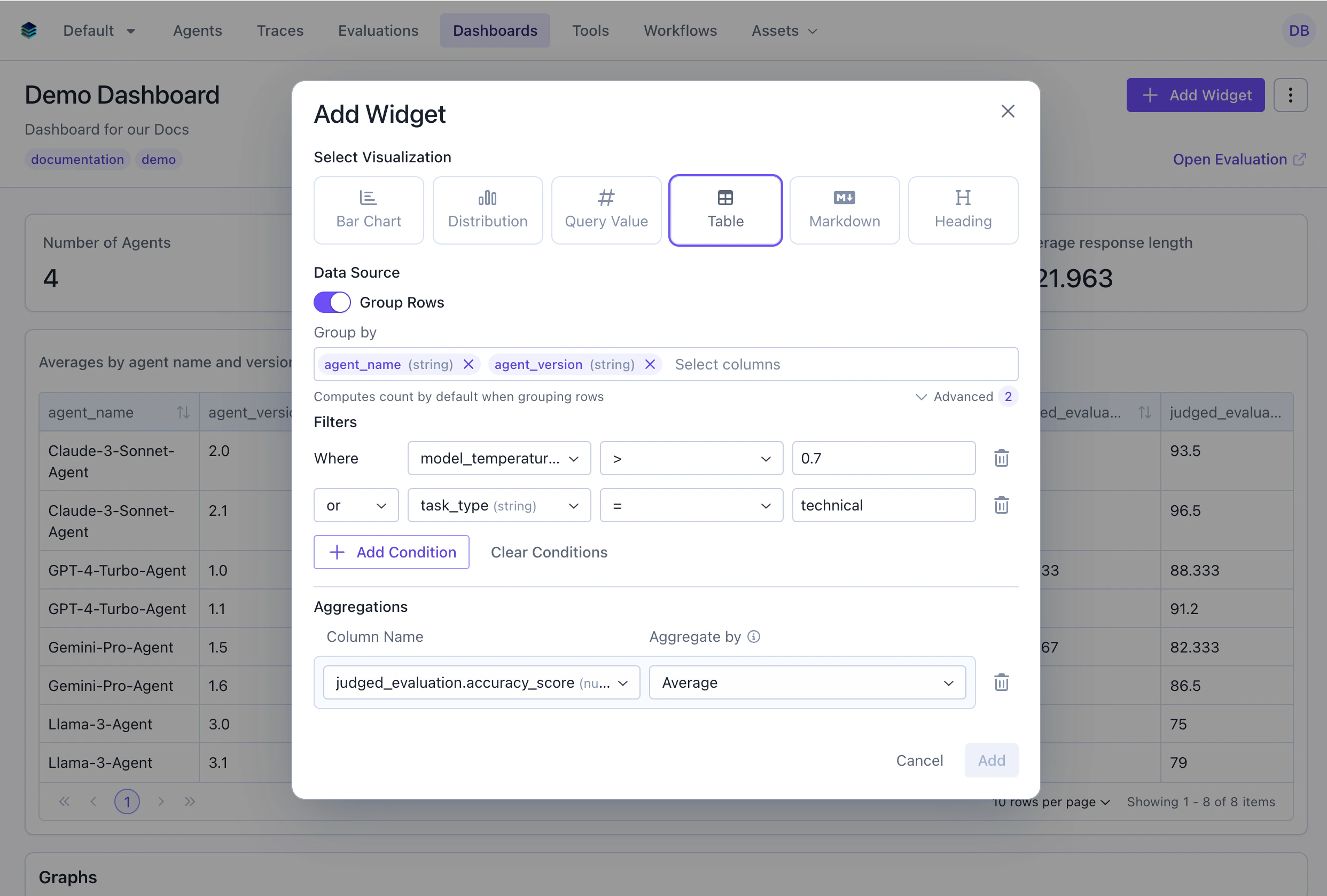

Table Filter Builder
Add conditions to narrow the data, these conditions will be applied to the data before it is aggregated.
7

Create Widget

Click “Add” to display the table

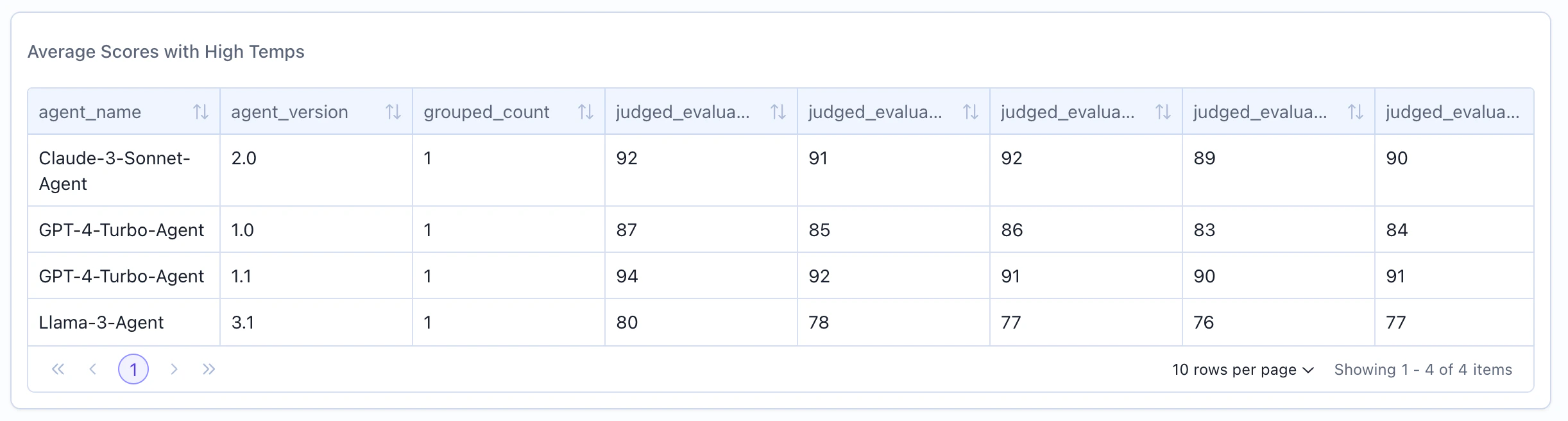

Created Table Widget

​
Conditional Formatting

Apply color-coded formatting rules to table cells to highlight important values at a glance. Conditional formatting is available on grouped tables (tables with aggregations).

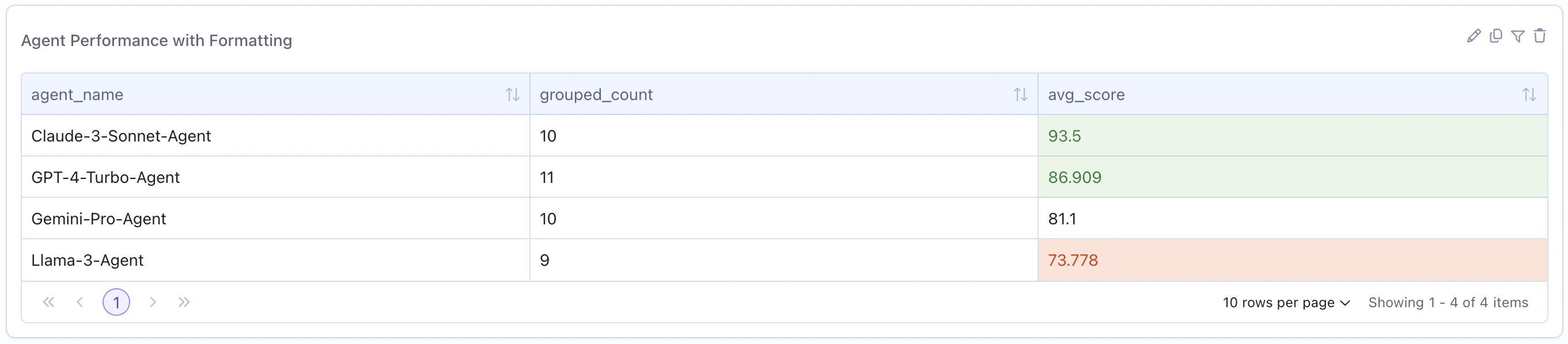

Table with Conditional Formatting

​
Enabling in the UI

When creating or editing a grouped table widget, expand the “Formatting” section to add rules. Select the aggregation column to format, choose a rule type, and pick a color.

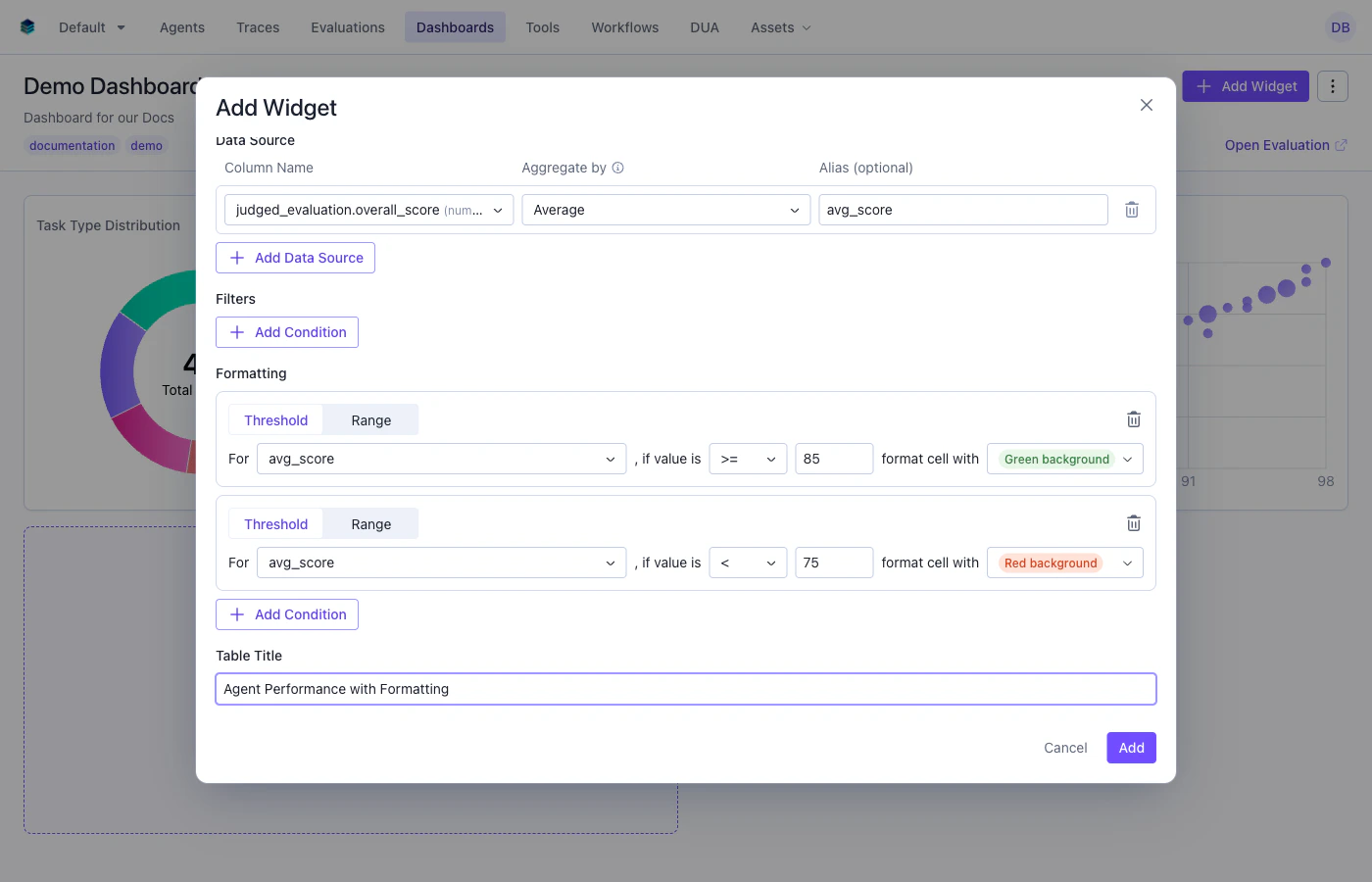

Conditional Formatting Form

​
Rule Types

​
Threshold Rules

Apply formatting when a cell value meets a comparison condition.
FieldTypeDescription
typestringMust be "threshold"
columnstringAggregation column name to format
operatorstringOne of: =, >, <, >=, <=
thresholdnumberValue to compare against
background_colorstringOne of: green, yellow, red, purple, blue

​
Range Rules

Apply formatting when a cell value falls within a range (inclusive).
FieldTypeDescription
typestringMust be "range"
columnstringAggregation column name to format
min_thresholdnumberLower bound (inclusive)
max_thresholdnumberUpper bound (inclusive)
background_colorstringOne of: green, yellow, red, purple, blue

​
SDK Example

widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Agent Scores with Formatting",
    type="table",
    query={
        "select": [
            {"expression": {"type": "COLUMN", "column": "agent_name", "source": "data"}},
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "AVG",
                    "column": "overall_score",
                    "source": "data"
                },
                "alias": "avg_score"
            }
        ],
        "groupBy": ["agent_name"]
    },
    config={
        "conditional_formatting": [
            {
                "type": "threshold",
                "column": "avg_score",
                "operator": ">=",
                "threshold": 90,
                "background_color": "green"
            },
            {
                "type": "range",
                "column": "avg_score",
                "min_threshold": 70,
                "max_threshold": 89,
                "background_color": "yellow"
            },
            {
                "type": "threshold",
                "column": "avg_score",
                "operator": "<",
                "threshold": 70,
                "background_color": "red"
            }
        ]
    }
)

​
Formatting Behavior

  • Rules are evaluated in order — the first matching rule wins
  • Only applies to aggregation columns in grouped tables
  • Available colors: green, yellow, red, purple, blue
  • For percentage columns, formatting comparisons use the display value (0-100), not the raw decimal (0-1)

​
Output Format

Table widgets return an array of row objects:
{
  "type": "series",
  "data": [
    {"category": "Quality", "count": 342, "avg_score": 0.89},
    {"category": "Accuracy", "count": 298, "avg_score": 0.85},
    {"category": "Helpfulness", "count": 411, "avg_score": 0.91}
  ]
}
Each object in the data array represents one row, with keys corresponding to column names.

​
Example Use Cases

​
Use Case 1: Agent Performance Breakdown

Show statistics grouped by agent with multiple metrics.
Agent Performance Table
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Performance by Agent",
    type="table",
    query={
        "select": [
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "agent_name",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "COUNT",
                    "column": "*"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "AVG",
                    "column": "overall_score",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "MIN",
                    "column": "overall_score",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "MAX",
                    "column": "overall_score",
                    "source": "data"
                }
            }
        ],
        "groupBy": ["agent_name"],
    }
)

​
Use Case 2: Top 10 Highest-Scoring Evaluations

Display the best-performing individual evaluations without aggregation.
In the UI sort using the table header, this will not be reflected in the query.

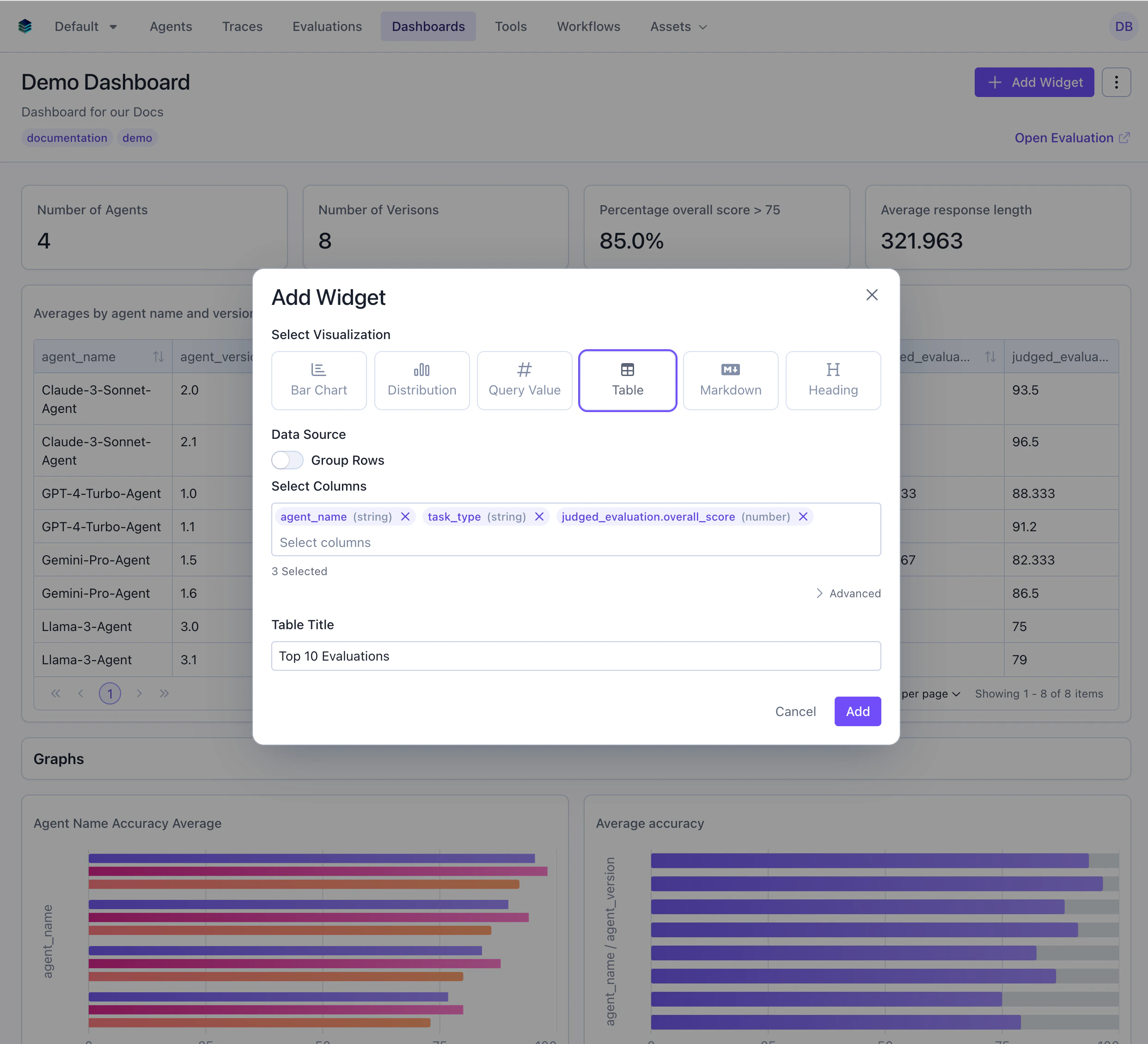

Top 10 Evaluations Table
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Top 10 Evaluations",
    type="table",
    query={
        "select": [
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "agent_name",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "task_type",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "overall_score",
                    "source": "data"
                }
            }
        ],
        "orderBy": [
            {
                "column": "overall_score",
                "direction": "DESC"
            }
        ],
        "limit": 10
    }
)

​
Use Case 3: Agent Comparison with Multiple Metrics

Compare agents across several statistical measures including accuracy and relevance.

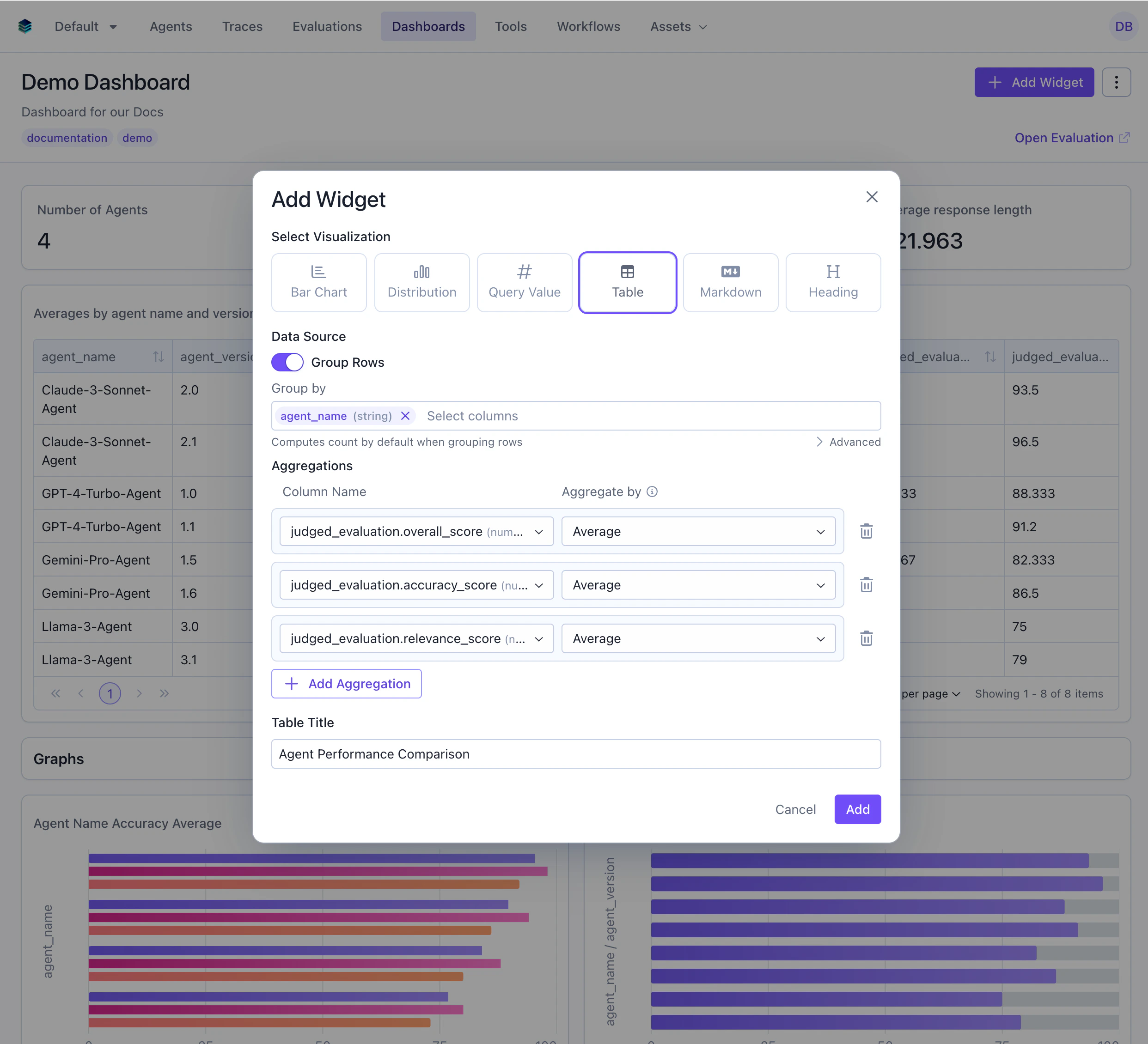

Agent Comparison Table
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Agent Performance Comparison",
    type="table",
    query={
        "select": [
            {
                "expression": {
                    "type": "COLUMN",
                    "column": "agent_name",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "COUNT",
                    "column": "*"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "AVG",
                    "column": "overall_score",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "AVG",
                    "column": "accuracy_score",
                    "source": "data"
                }
            },
            {
                "expression": {
                    "type": "AGGREGATION",
                    "function": "AVG",
                    "column": "relevance_score",
                    "source": "data"
                }
            }
        ],
        "groupBy": ["agent_name"]
    }
)

​
Use Case 4: Low-Scoring Evaluations Review

Show evaluations scoring below 80 that need attention.

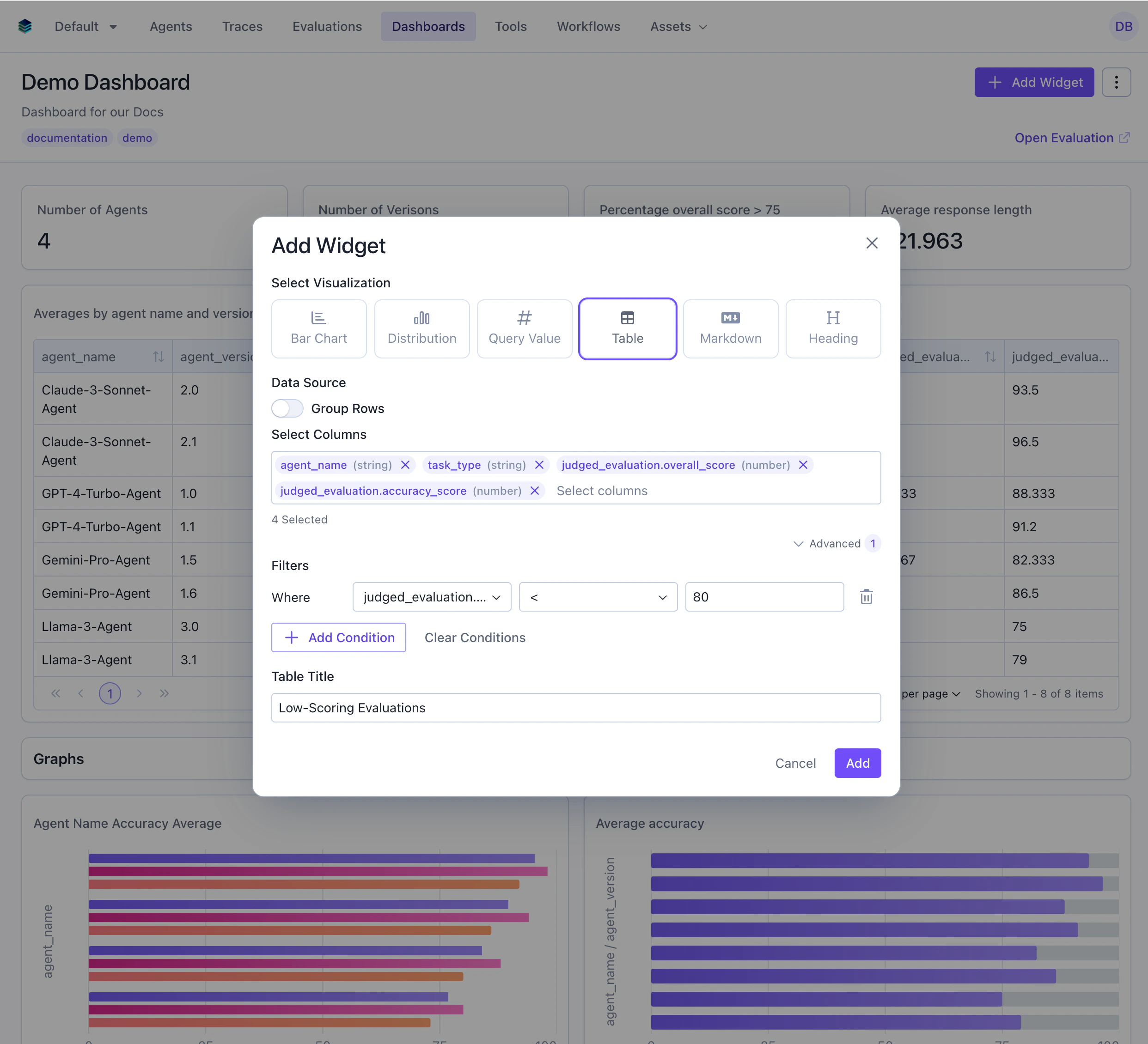

Filtered Evaluations Table
widget = client.evaluation_dashboards.widgets.create(
    dashboard_id=dashboard.id,
    title="Low-Scoring Evaluations",
    type="table",
    query={
        "select": [
            {"expression": {"type": "COLUMN", "column": "agent_name", "source": "data"}},
            {"expression": {"type": "COLUMN", "column": "task_type", "source": "data"}},
            {"expression": {"type": "COLUMN", "column": "overall_score", "source": "data"}},
            {"expression": {"type": "COLUMN", "column": "accuracy_score", "source": "data"}}
        ],
        "filter": {
            "conditions": [
                {
                    "column": "overall_score",
                    "source": "data",
                    "operator": "<",
                    "value": 80
                }
            ]
        }
    }
)
